> Roth / TORO > Handgeräte > Schneefräsen > zweistufig > 824 XL > 612/38084 > 7900001 > Motor Tecumseh (Modell-Nr. HMSK80-155386U)

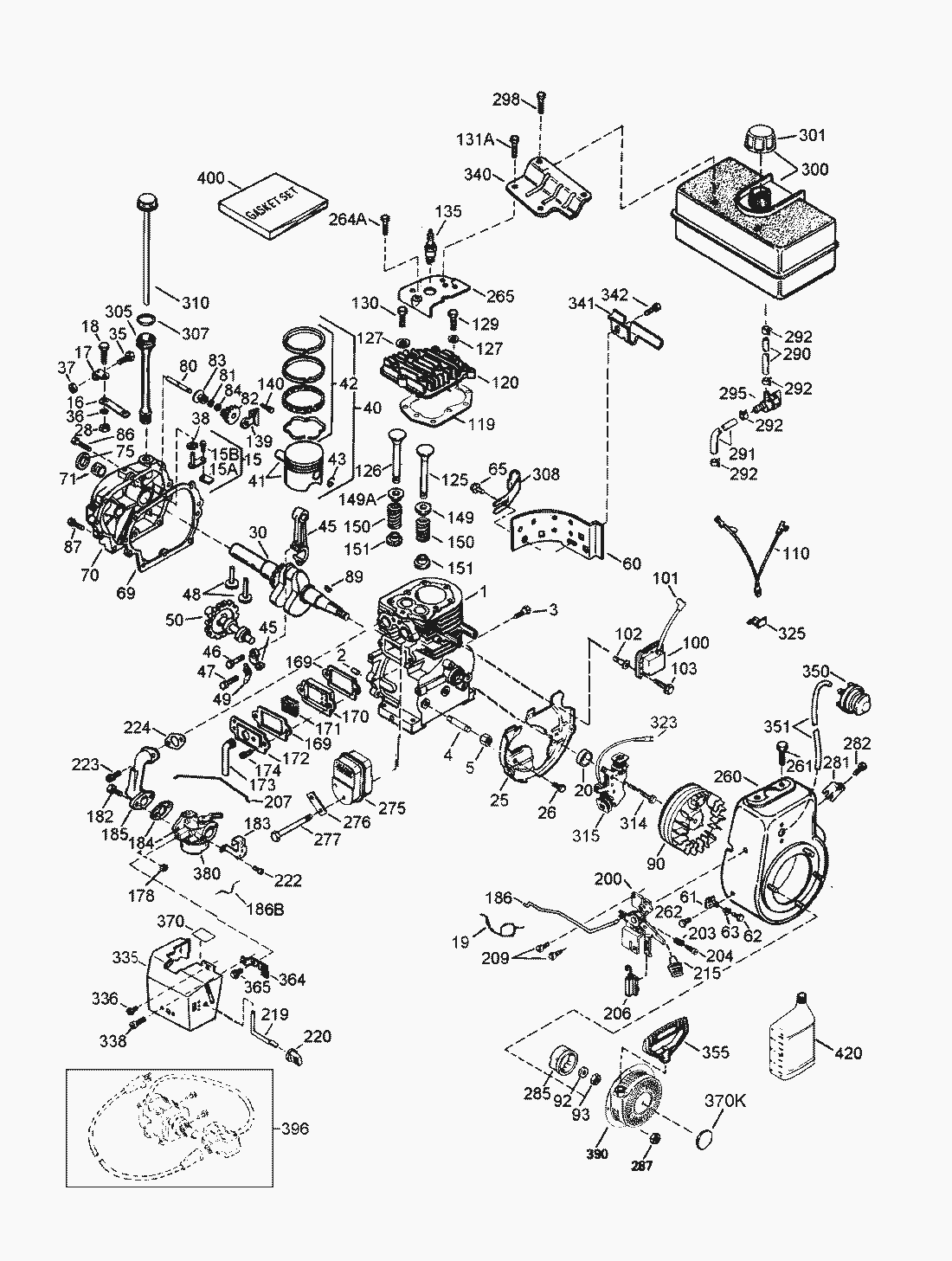

Ersatzteillisten für Toro Roth / TORO Motor Tecumseh (Modell-Nr. HMSK80-155386U)

Pos.	Bezeichnung	Ersatzteilnummer
2	Haltedorn	27652
3	Schraube	650820
4	Oil Drain Extension	XXXXX
5	Verschlusskappe s	30969
15	Klemme s	30700
15	Screw, Fil. Hd.	650494
16	Hebel	33454
17	Clamp, Governor Lever	29916
18	Screw, Hex Washer Hd.	650548
19	Feder	34663
20	Simmerring	35319
25	Blower Housing Baffle	36460
26	Schraube	650561
28	Locknut, Hex	30322
30	Crankshaft	35571A
35	Schraube	29826
36	Lockwasher, E.T.	29918
37	Mutter	29216
38	Ring, Retaining	29642
40	Kolben Kompl+Ringe	34552
42	Ring Set, Piston (Std.)	34332
43	Kolbenbolzensicher.	27888
46	Bolt-Connecting Rod	650908
47	Screw, Connecting Rod	650882
48	Ventilstoessel	34034
49	Oelschleuder	35374
50	Nockenwelle	35375
60	Extension, Blower Housing	33273A
61	Bracket, Grommet Mounting	34126
62	Schraube	650760
63	Grommet, Plastic	28545
65	Schraube	650128
69	Cylinder Cover Gasket	35262A
70	Oelwanne	35376
71	Bushing, Crankshaft	35377
75	Simmerring	35319
80	Reglerachse	31845
81	Washer, Flat	30590A
83	Spool, Governor	30588A
84	Sicherungsring	29193
86	Screw, Hex Washer Hd.	650833
87	Screw, Hex Washer Hd.	650832
89	Keil	32589
90	Schwungrad	611093
92	Washer, Lock	650880
93	Nut, Flywheel	650881
100	Zuendspule s	35135
101	Cover, Spark Plug	610118
102	Stehbolzen	650872
103	Screw, Torx T-15	651007
110	Wire, Ground	35253
119	Zylinderkopfdichtung	36448
120	Zylinderkopf	36449
127	Washer, Flat	650691
129	Screw, Special Hex Hd. Tapped	650727
130	Screw, Hex Flange Hd.	6021A
131	Schraube	650713
135	Spark Plug, Resistor (Champion RJ-19LM)	35395
139	Bracket, Governor Gear	33369
140	Screw, Hex Washer Hd. Thread Forming	650836
149	Federteller	27882
149	Dichtung	35862
150	Spring, Valve	27881
151	Ventilteller	32581
169	Gasket-Breather	27896A
170	Ventildeckeleinsatz	28423
171	Filter	28424
172	Entluefterdeckel	28425
173	Entlueftungsschlauch	35350
174	Schraube	650128
178	Nut & Lockwasher	29752
182	Screw, Fil. Hd.	30088A
183	Halter	34587
184	Dichtung	33263
185	Pipe, Intake	33877
186	Gestaenge	34667
186	Feder	36652

Gebrauchsanweisungen

Pos.	Bezeichnung	Ersatzteilnummer
	Piston, Pin & Ring Assy. (Incl. Ref.	34553
	Cylinder Assy. (lncl. Ref.	35385
	Valve, Exhaust (Std.) (Incl. Ref.	27878A
	Piston & Pin Assy. (Incl. Ref.	34330A
	Connecting Rod Assy. (Incl. Ref.	35373A
	Valve, Exhaust (1/32 Oversize) (Incl. Ref. #47) 44 52 2_227012 1 38080 Valve, Exhaust (1/32 Oversize) (Incl. Ref.	27880A
	Piston & Pin Assy. (Incl. Ref.	34331A
	Ring Set, Piston (.010 Oversize)	34333
	Piston & Pin Assy. (Incl. Ref.	34329A
	Piston, Pin & Ring Assy. (Incl. Ref.	34554
	Rod Assy., Governor (Incl. Ref.	30699C
	Valve, Intake (1/32 Oversize) (Incl. Ref. #47) 43 50 2_227012 1 38080 Valve, Intake (1/32 Oversize) (Incl. Ref.	34036
	Valve, Intake (Std.) (Incl. Ref.	34035
	Gear Assy., Governor (Incl. Ref.	35378
	Ring Set, Piston (.020 Oversize)	34334
